CP-APMB

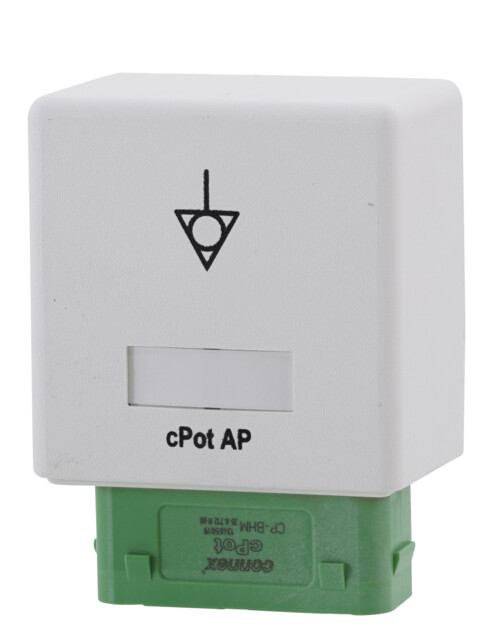

CONNEX cPot wallbox couples wiht male panel coupler
cPot male wall connector is a solution for the grounding of the mobile installations to the building grounding system. Wall connector can be mounted on the wall or other surface.
Selection of topics
Features & Benefits
Article Variations
Technical Information
Features & Benefits
- To be mounted on the wall or other surface.
- Featuring cPot male connector
- Insulating housing for protection against accidental contact
Article Variations
| Article name | Details | Order code |
| CP-APMB-WH | Connection point mounted white 1x cPot[m] 35/25 mm² | 1027383 |
| CP-APMB-BK | Connection point mounted black 1x cPot[m] 35/25 mm² | 1027384 |
Technical Information
| Product | |
| Description | CP-APMB-WH / -BK |
| Electrical | |
| Contactor resistance | Contactor resistance |
| Mechanical | |
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm² |
| Connection wire size | 2 x 4mm² - 35mm² 1 x 1,5mm² - 25mm² |
| Material | |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Environmental | |
| Standards compatibility | UL94-V0 (connector) |
| Protection class IEC 60529 | IP65 |
| Temperature range | -40 °C – 55°C |
