CP-BSAM

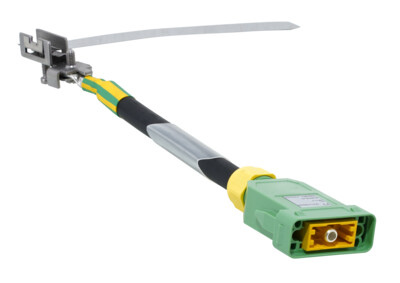

CONNEX cPot ribbon clip adapter
cPot ribbon clip adapter is a grounding / potential equalization point for the non-standard pipes / bars / truss dimensions, incl. squared frames.
Selection of topics
Features & Benefits
Article Variations
Technical Information
Features & Benefits
- For pipe diameter 8-50mm(1/8-1 ½”)
- Ribbon length 209mm
Article Variations
| Article name | Details | Order code |
| CP-BSAM-50 | 0,25 m ribbon clip adapter PE cPot [m] IP65 25 mm² | 1027387 |
Technical Information
| Product | |
| Description | CP-BSAM |
| Electrical | |
| Contactor resistance | ≤0,3 mΩ |
| Mechanical | |
| Lifetime | > 500 Mating cycles per cPot connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm2 |
| Material | |
| Contact | Contact |
| Shell | Polycarbonat (PC) |
| Environmental | |
| Standards compatibility | UL94-V0 (connector) |
| Protection class nach IEC 60529 | IP65 |
| Temperature range | -40 °C – 55°C |
