cPot recessed male connectors
cPot recessed male connector is a solution for the integration of the cPot receptacle into the device enclosure or panel.
Selection of topics
Features & Benefits
Article Variations
Technical Information
Features & Benefits
- cPot recessed male connectors is a solution for the integration in the device enclosure or panel installation
Article Variations
| Article name | Details | Order name |
| CP-PMA | Panel male PE axial 10-25 mm² | 1027373 |
| CP-PMB | Panel male PE terminal block 2x35/1x25 mm² | 1027374 |

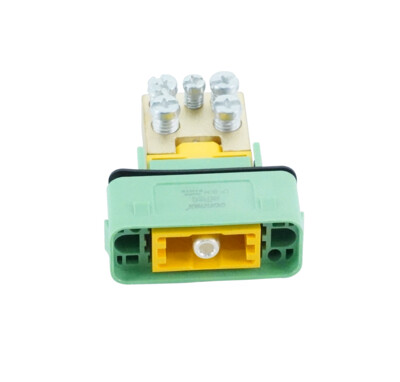

| CP-PM620 | Panel male PE M6x20 mm | 1027375 |
Technical Information
| Product | |
| Description | CP-PMx |
| Scope of delivery | CP-PMA: 1x panel housing male green, 1x insert male yellow, 1x axial contact 10-25mm² male, 13mm isolation of cable has to be removed |
| CP-PMB: Panel male PE terminal block 2x35/1x25 mm² | |
| CP-PM620: 1x panel housing male green, 1x insert male yellow, 1x contact male with M6 thread 20mm |
| Electrical | |
| Contactor resistance | ≤0,3 mΩ |
| Mechanical | |
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm2 |
| Material | |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Environmental | |
| Standards compatibility | UL94-V0 (connector) |
| Protection class nach IEC 60529 | IP65 in mated condition |
| Temperature range | -40 °C – 55°C |
