CP-PTP

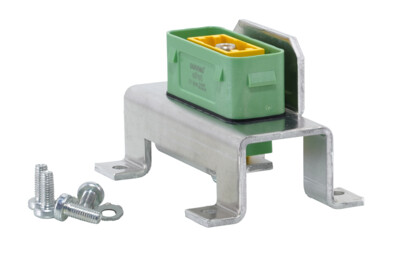

Platform connection point with cPot coupler
Platform connection point with cPot coupler is a grounding / potential equalization point for the platform structures.
Selection of topics
Features & Benefits
Article Variations
Technical Information
Features & Benefits
- To be mounted into the platform profile
- M5 thread screws
- Aluminum fixation bracket
Article Variations
| Article name | Details | Order code |
| CP-PTP-100 | Platform terminal point 1x cPot[m] | 1027385 |
Technical Information
| Product | |
| Description | CP-PTP |
| Scope of delivery | 4x flathead screw M5x12, 4x contact washer M5 |
| Electrical | |
| Contactor resistance | ≤0,3 mΩ |
| Mechanical | |
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Material | |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) (connextor) |
