CP-X

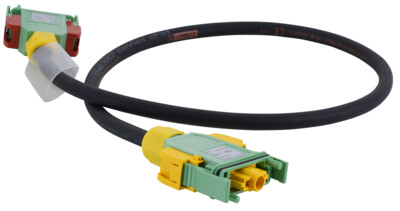

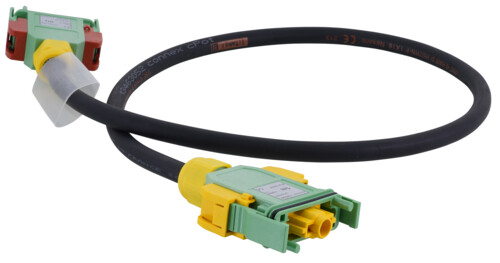

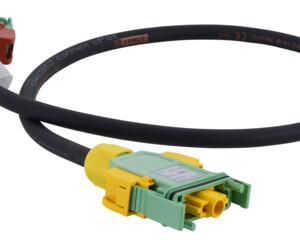

cPOT ready-made cables
cPot ready made cable is a lockable solution allowing fast and easy wiring of the cPot grounding system. Additional locking clips are removable by tool only according to the DIN 15700.
Selection of topics
Features & Benefits
Downloads
Article Variations
Technical Information
Accessories
Features & Benefits
- Ready made female – female lockable cable assembly
- Easy cable length adjustment (for example, for conduit installation) due to demountable connector / axial screwed contact

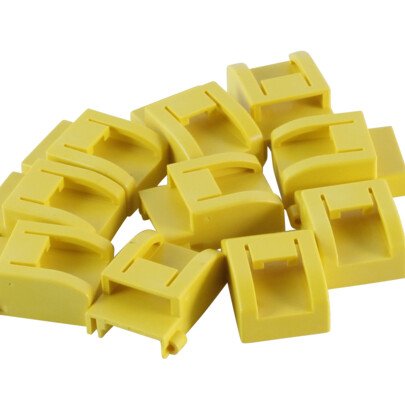

- Connector with locking clips are removable by tool only according to the DIN 15700.
- High quality rubber cable H07RN-F with 16mm² and 25mm² conductor cross-section
- Extendable with cPot coupler (CP-MM)
- Easy mating / unmating connector in gloves
Markets & Applications
- Markets: Professional video wall / lighting / audio
- Mobile grounding / potential equalization applications for festivals, exhibitions, sport, and other live events
- Semi-permanent grounding / potential equalization: Theaters, indoor events

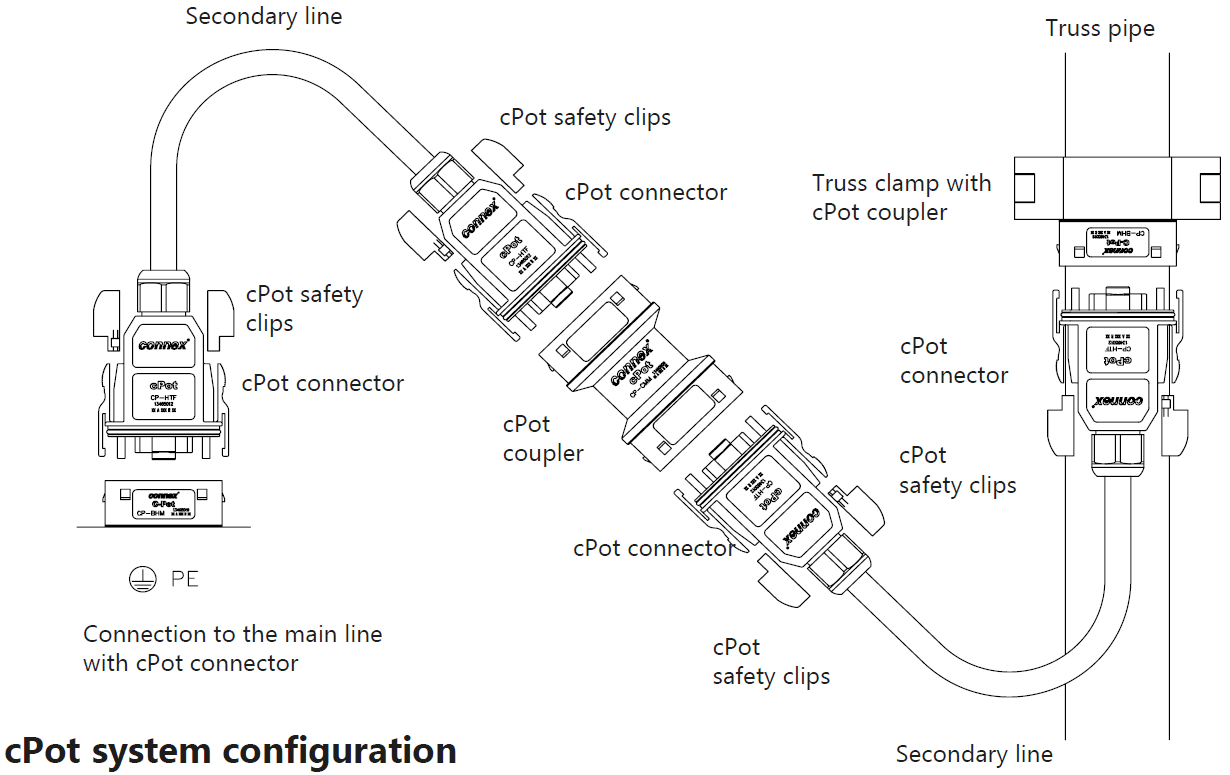

CONTRIK cPot system configuration
Article Variations
| Article name | Details | Order name |
| CP-X16-001 | Cable 1 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027356 |
| CP-X16-002 | Cable 2 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027357 |
| CP-X16-005 | Cable 5 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027358 |
| CP-X16-010 | Cable 10 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027359 |
| CP-X16-015 | Cable 15 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027360 |
| CP-X16-020 | Cable 20 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027361 |
| CP-X16-025 | Cable 25 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027362 |
| CP-X25-010 | Cable 10 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027363 |
| CP-X25-025 | Cable 25 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027364 |
| CP-X25-050 | Cable 50 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027365 |

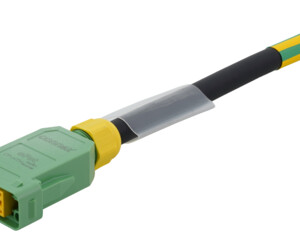

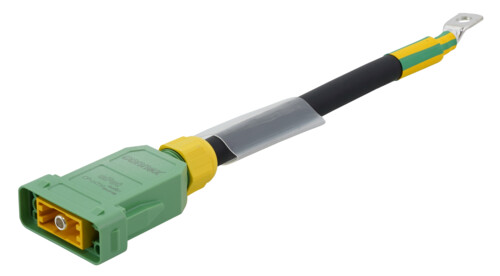

| CP-X25-R8M-00025 | Cable 0,25 m eyelet M8 cPot [m] 25 mm² H07RN-F1X | 1027366 |
| CP-X25-R12M-00025 | Cable 0,25 m eyelet M12 cPot [m] 25 mm² H07RN-F1X | 1027367 |
| CP-X25-R12F-00025 | Cable 0,25 m eyelet M12 cPot [f] 25 mm² H07RN-F1X | 1027368 |
Technical Information
| Product | |
| Description | CP-X* |
| Gender | CP-X*-* : Female – female CP-X*-R*-* : Adapter cables female / male – eyelet |
| Cable type | H07RN-F |
| Electrical | |
| Contactor resistance | 0,3 mΩ |
| Mechanical | |
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm² , 25 mm² |
| Material | |
| Cable Jacket Type | Rubber |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Environmental | |
| Standards compatibility | UL94-V0 (connector) |
| Protection class | IP65 in mated condition |
| Temperature range | -40 °C to 50 °C |
