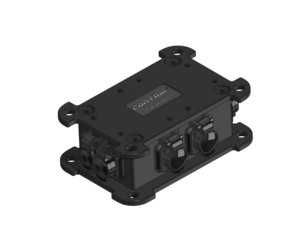

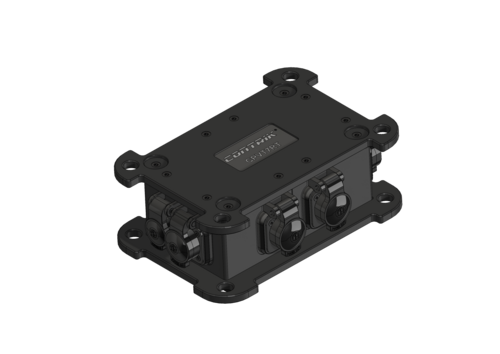

Power Turtle Xtreme Outdoor. 1 x powerCON TRUE1 TOP In- 7 x powerCON® TRUE1® TOP Out.
Power Turtle Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions.
Article name | Details | Order code |
CPVT7RT | IN: powerCON® TRUE1® TOP - OUT: 7x powerCON® TRUE1® TOP | 1027451 |
Product | |
Input device | 1x powerCON® TRUE1® TOP with self-closing caps |
Output device | 7x powerCON® TRUE1® TOP with self-closing caps |
Daisy chaining | 1x powerCON® TRUE1® TOP with self-closing caps |
Electrical | |
Contact resistance / protection class | Protection class II |
Dielectric strength | 0.5 kV / mm |
Rated voltage | 250V AC |
Rated Current | 16A (USA: 20A) |
Number of electrical contacts | 2 + PE |
Phases | single-phase |
Mechanical | |
Lifetime | > 5000 Mating cycles |
Dimensions | 220 x 150 x 85 mm |
Conductor cross section | 2,5 mm² |
Weight | 1.18 kg |
Mounting options | Truss clamp, mounting wholes for pegging or suspension |
Type of construction | Stackable |
Material | |
Housing | Easylen |
Color | black |
Environmental | |
Standards compatibility | UL94-V2 |
Protection class | IP65 |
Temperature range | -25 °C to +70 °C |
