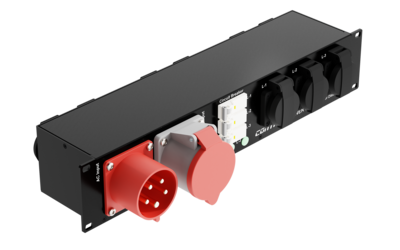

Power Rack Xtreme CPR32-C2-F9-CB
1x CEE32A In / Daisy chain, 9x Schuko Type F Out
Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.
Selection of topics
Features & Benefits
Downloads
Technical Information
Accessories
Features & Benefits
- High quality electrical and electronical component from the renowned brands
- Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
- High quality assembly in EU
- Attractive price / value ratio
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile application: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Ordering information
| Article name | Details | Order code |

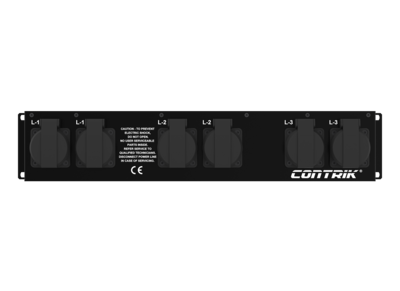

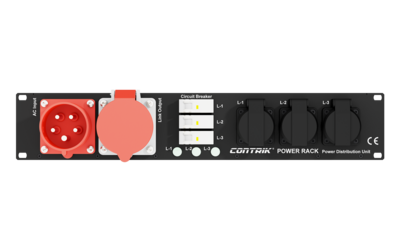

| CPR32-C2-F9-CB | Front: IN 1x CEE32A; Daisy chain 1x CEE32A; OUT 3x Schuko Type F; Circuit protection: 3x MCB. Back: OUT6x Schuko Type F |
1029170 |
Technical Information
| Product | |
| Input device | 1x CEE32A 5P red (front) |
| Daisy chain | 1x CEE32A 5P red (daisy chain) front |
| Output device | 9x Schuko Type F socked with lid (front) |
| Electrical | |
| Circuit protection | 3x MCB 1pol C16 |
| Phase control indicator | L1, L2, L3, green |
| Rated voltage | 415 V/AC, 50 Hz |
| Rated current | CEE Socket: 415 V Schuko Socket: 230 V 16 A |
| Mechanical | |
| Weight | 3.8 kg |
| Type of construction | 19“ Housing 2 HE, 1.5 TE |
| Dimensions | 483 x 88 x 104 mm (without fittings) |
| Material | |
| Housing | Metal |
| Color | Black |
| Environmental | |
| Protection class | IP20 |
| Temperature range | -5 to +40°C |
