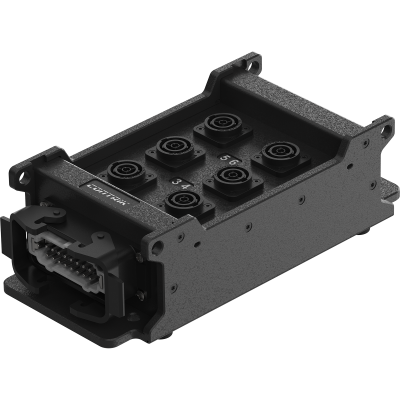

IN: 1 x Harting E16 – OUT: 6 x powerCON® TRUE1® TOP
Power Strip Multicore are extremely rugged and compact distribution boxes which allow significant reduction of the cabling effort and cost due to the multicore inputs. It is ideally suited for indoor usage and demanding mobile applications. 1x Harting E16 In – 6x powerCON® TRUE1® TOP Out
| Article name | Details | Order code |
| CPSMX-H1-T6 | IN: 1 x Harting E16, IP20 | 1037501 |
| Product | |
| Input device | 1 x Harting E 16 (6 channels) [1-9] |
| Output device | 6 x powerCON® TRUE1® TOP |
| Electrical | |
| Contact resistance / protection class Dielectric strength | Protection class II |
| Dielectric strength | 0,5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A |
| Mechanical | |
| Dimensions | 150 x 95,25 x 330mm |
| Weight | |
| Conductor cross section | 2,5 mm² |
| Mounting options | Truss clamp (M10), mounting wholes for pegging or suspension |

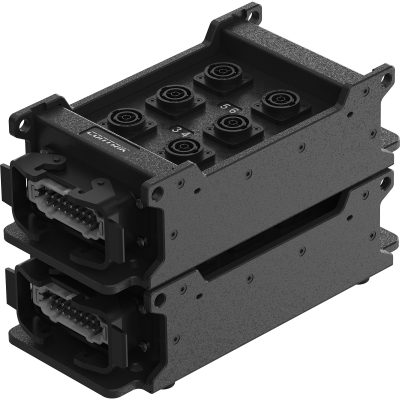

| Type of construction | Stackable |
| Material | |
| Housing | Easylen |
| Color | black |
| Environmental | |
| Flammability acc. to UL 94 | V-2 |
| Protection class | IP20 |
| Temperature range | -25 °C bis +40 °C |
