IN: 1x Harting E16 – OUT: 12x powerCON® TRUE1® TOP

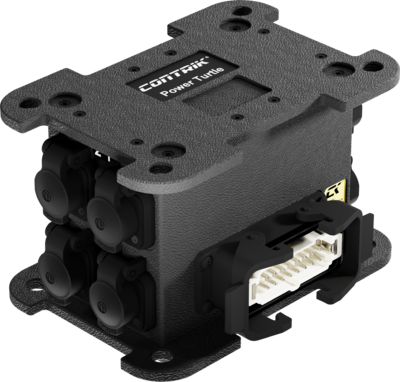

Power Turtle Multicore are extremely rugged compact distribution boxes which allow significant reduction of the cabling volume, effort and cost due to the multicore input. It is ideally suited for outdoor usage and demanding mobile applications.1x Harting E16 IN – 12x powerCON® TRUE1® TOP OUT
|
Article name
|
Details
|
Order code
|
|
CPTM-H1-T12
|
IN: 1x Harting E16,
OUT: 12x powerCON T1 TOP |
1028848
|
| Product | |

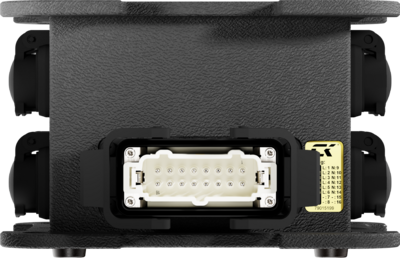

| Input device | 1x Harting E 16 (6 channels) [1-9] |

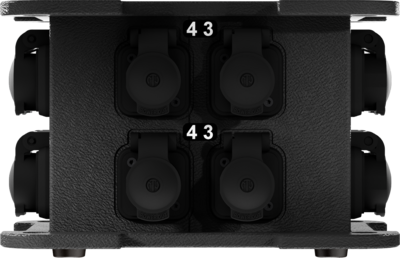

| Output device | 12x powerCON® TRUE1® TOP with self-closing caps |
| Daisy chaining | powerCON® TRUE1® TOP with self-closing caps |
| Electrical | |
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0,5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
| Dimensions | 225 x 173 x 144 mm |
| Conductor cross section | 2,08 mm² |
| Mounting options | Truss clamp (M10), mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
| Housing | Easylen |
| Color | black |
| Environmental | |
| Flammability acc. to UL 94 | V-2 |
| Protection class | IP65 with Harting E16 in mated condition |
| Temperature range | -25 °C bis +40 °C |
