POWER CONTAINER XTREME CPCL125-C1-C6-RBM
On request modification.
IN: 1x CEE125A, OUT: 2 x CEE63A, 2 x CEE32A, 2 x CEE16A.
Power Container is a highly reliable, rugged and first level powerful distribution solution.
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material.
- Universal CEE solution offering a wide range of CEE outputs with various current ratings.
- Easy transport & handling: compact, stackable, fully lockable, integrated handles.
- High quality electrical and electronical component from the renowned brands.
- High quality assembly in EU
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile applications: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Ordering Information
| Article name | Details | Order code |
| CPCL125-C1-C6-RBM | Front: 18x MCB (1-pole), 4x RCCB (3-pole + N), Back: IN: 1x CEE125A 5P, OUT: 2x CEE63A 5P, 2x CEE32A 5P, 2x CEE16A 5P | 1038606 |
Technical Information
| Product | |
| Input device | 1x CEE125A 5P |
| Output device | 2x CEE63A 5P (6x MCB 1P) 2x CEE32A 5P (6x MCB 1P, 2x RCCB 40A 3P+N) 2x CEE16A 5P (6x MCB 1P, 2x RCCB 40A 3P+N) 1x cPot |
| Main switch | 1x main switch 4-pin |
| Power meter | Selec MFM 384 |
| Electrical | |
| Phase control indicator | L1, L2, L3, green |
| Rated voltage | 400V |
| Rated Current | 125A |
| Mechanical | |
| Weight | |

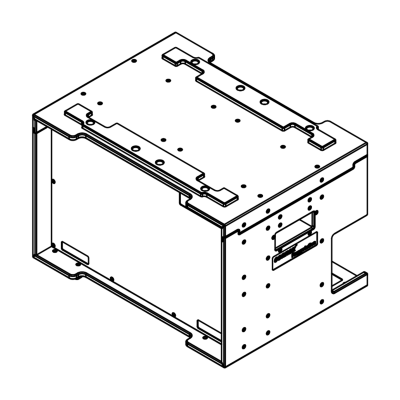

| Type of construction | Stackable |
| Material | |
| Housing | Easylen® |
| Color | Black |
| Environmental | |
| Protection class | IP44 with CEE and cPot in mated condition |
| Temperature range | -5 to +40°C |
